Install and Configure the FIX Bridge

You will learn how to configure and use the fix-bridge.

Conda

Install the “roq-fix-bridge” package

$ conda install -y -c https://roq-trading.com/conda/unstable roq-fix-bridge

For testing, it is also useful to install the “roq-tools” package

$ conda install -y -c https://roq-trading.com/conda/unstable roq-tools

Note

Remember that it is more efficient to install all packages at the same time. Here we install them separately to emphasize that “roq-tools” isn’t required to use the FIX bridge.

Configure

The FIX bridge package include a TOML config template which you can copy and modify

$ cp $CONDA_PREFIX/share/roq-fix-bridge/config.toml $HOME/fix-bridge.toml

Edit the config file

$ vi $HOME/fix-bridge.toml

The config file has 2 key sections which are discussed in the following.

Symbols

An optional regex list used for market data subscriptions.

[symbols.binance-futures]
regex=[ ".*BTC.*" ]

[symbols.deribit]
regex=".*"

Important

Notice that the second part of the key should match the --name flag used by upstream gateways.

Users

Users are clients to the FIX bridge.

Clients must logon and identify themselves using component and username matching this configuration.

A client is allowed to send order actions only if an account alias is defined for that user.

[users.subscriber]
component="fix-client"
username="subscriber"

[users.trader]
component="fix-client"
username="trader"
password="secret"
account="A1"

Important

The same account alias can not be mapped for more than 1 (one) user.

Note

It is possible to break this 1:1 link by using roq-fix-proxy, but that’s outside the scope of this blog.

Running

The command-line to launch the FIX bridge

$ roq-fix-bridge \
    --name "fix-bridge" \
    --config_file $HOME/fix-bridge.toml \
    --client_listen_address tcp://localhost:1234 \
    $HOME/binance-futures.sock \
    $HOME/deribit.sock

Here we listen for client connections on TCP port 1234.

Note

The FIX bridge can listen for client connections on either TCP or UNIX socket.

As demonstrated with Binance and Deribit, the FIX bridge can be client to many upstream gateways.

Testing

The “roq-tools” package includes a TUI (terminal user-interface)

$PREFIX ./roq-fix-tui \
  --account A1 \
  --exchange deribit \
  --symbol BTC-PERPETUAL \
  --currency BTC \
  --fix_target_comp_id fix-bridge \
  --fix_sender_comp_id fix-client \
  --fix_username trader \
  --fix_password secret \
  tcp://localhost:1234

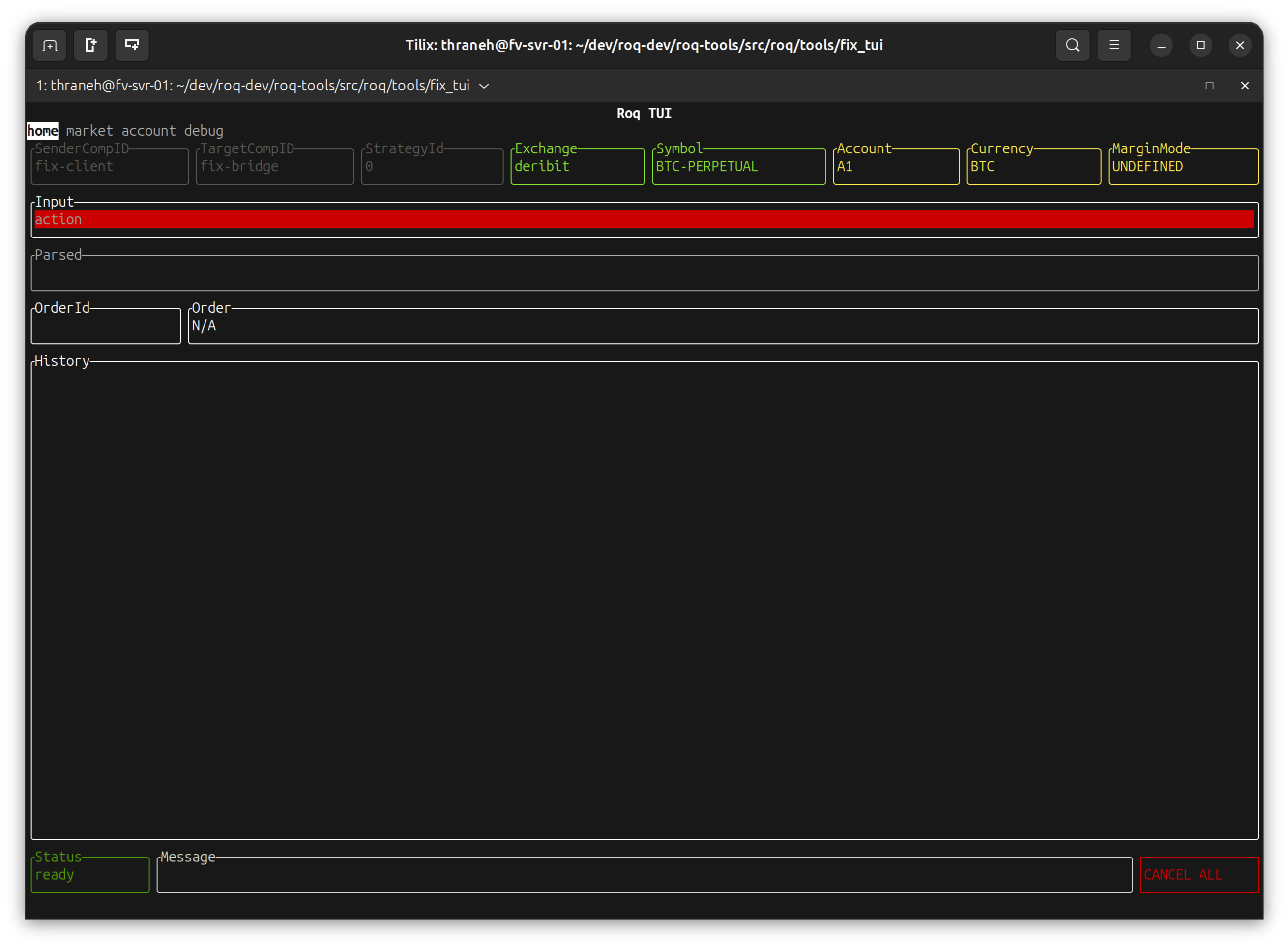

You should now see this

../../../_images/home.png

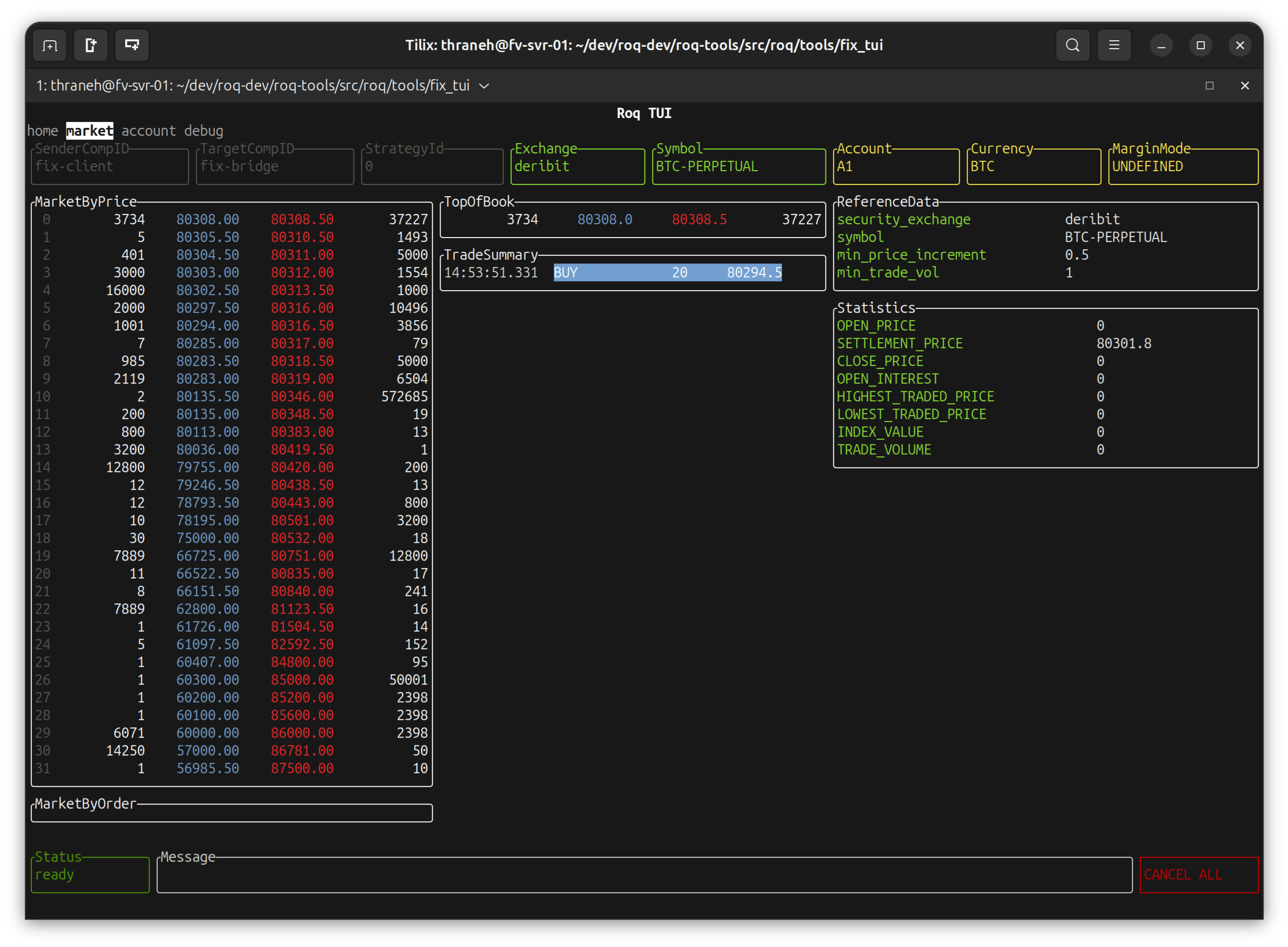

Navigating to “market”

../../../_images/market1.png

Note

This TUI (“roq-fix-tui”) has less data than the standard TUI (“roq-tui”) because of FIX protocol limitations.

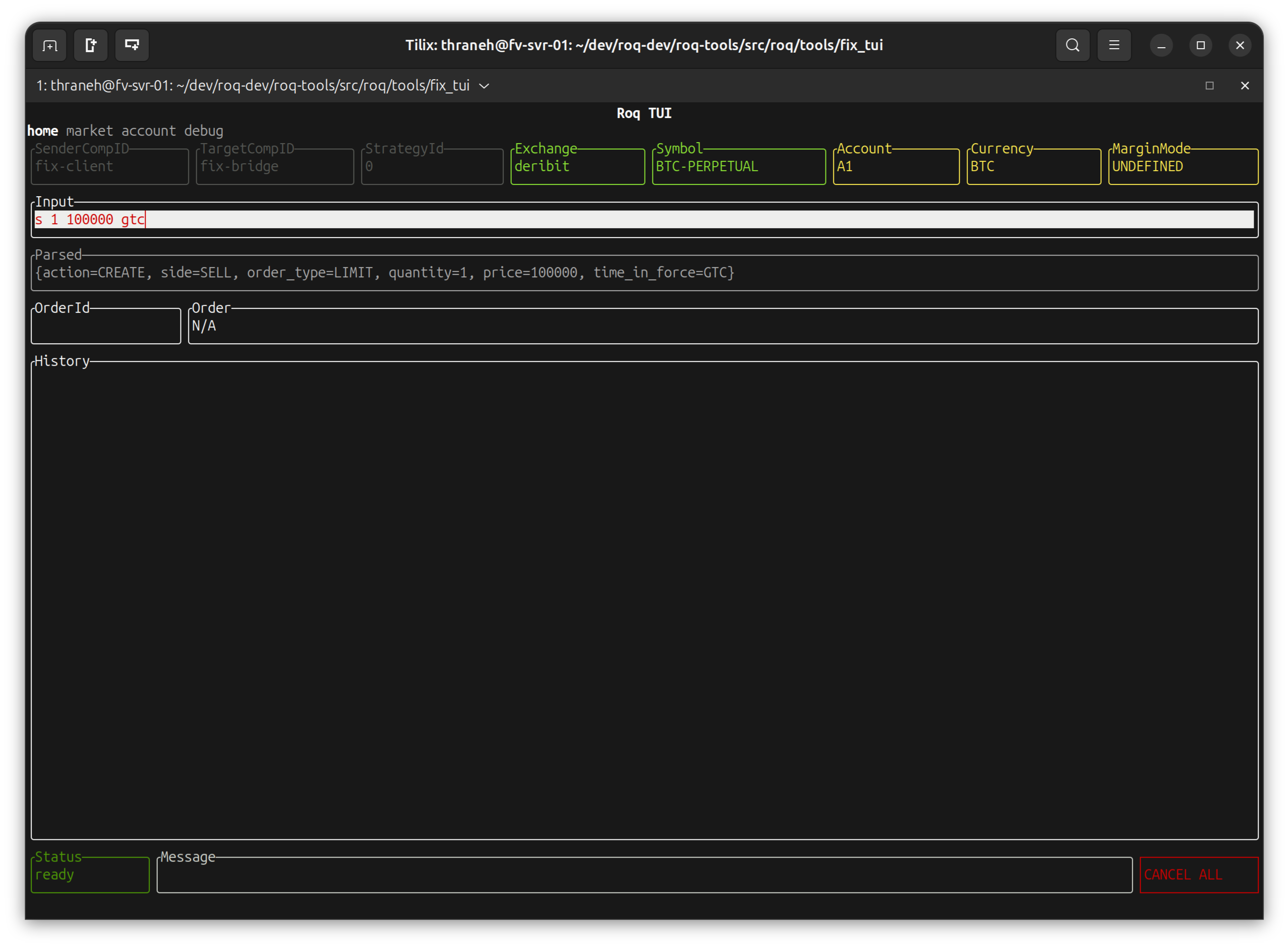

Navigating back to “home”, we can enter the details of a new limit order

../../../_images/create1.png

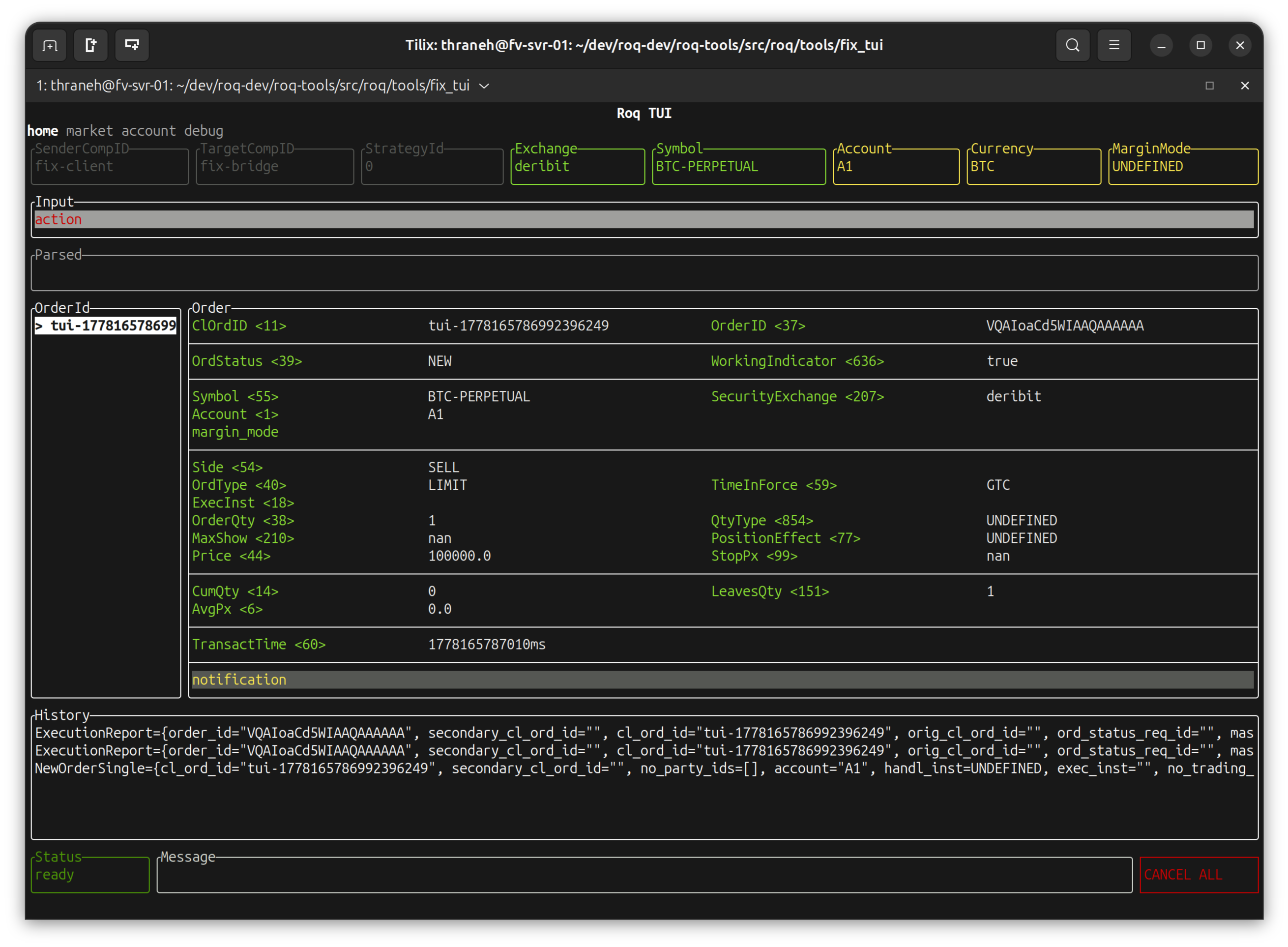

After hitting “enter”

../../../_images/created1.png

Note

We notice the message log contains the “NewOrderSingle” request followed by two “ExecutionReport”s. This is as would be expected by the FIX protocol.

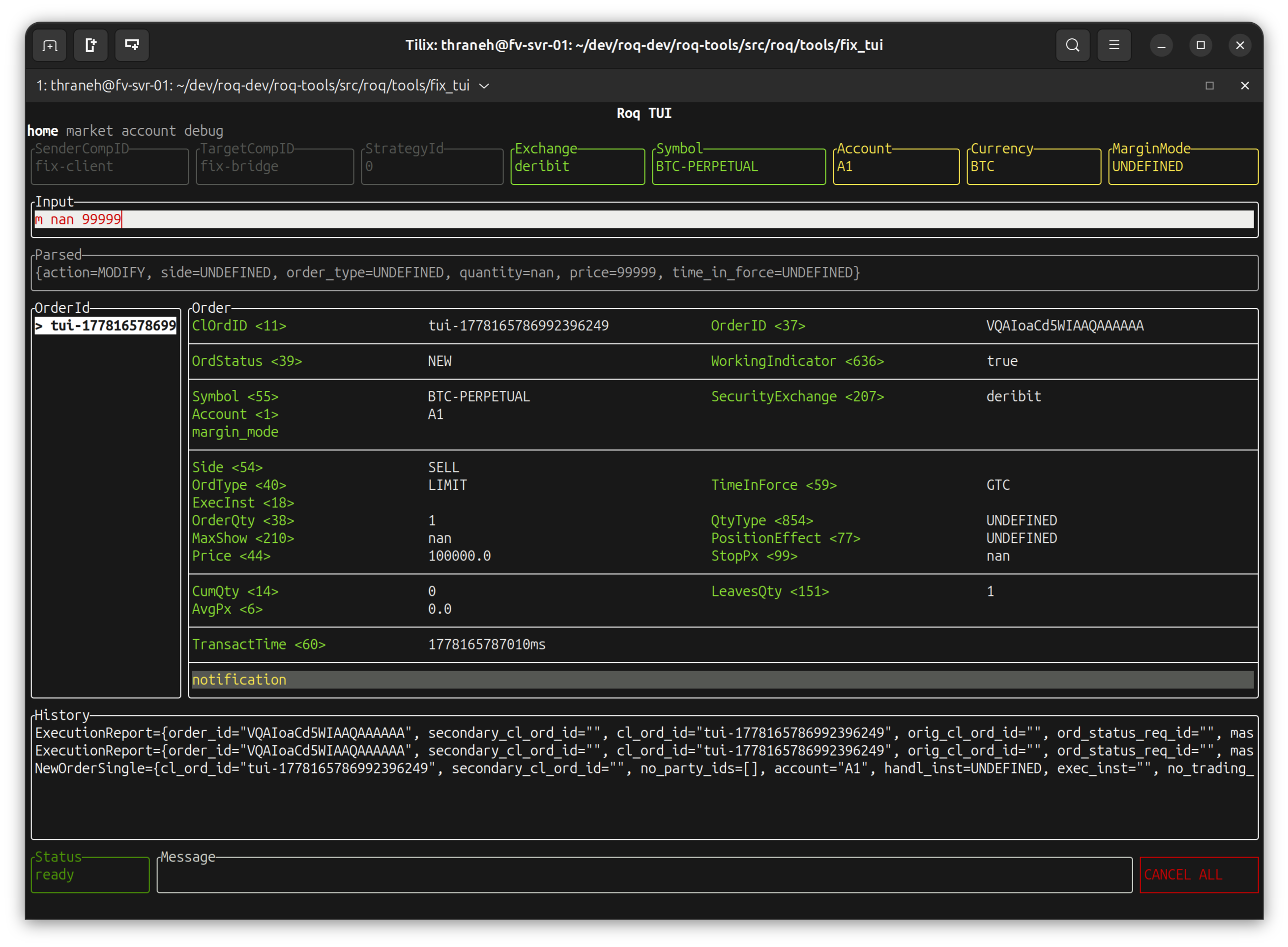

Then we modify the price

../../../_images/modify1.png

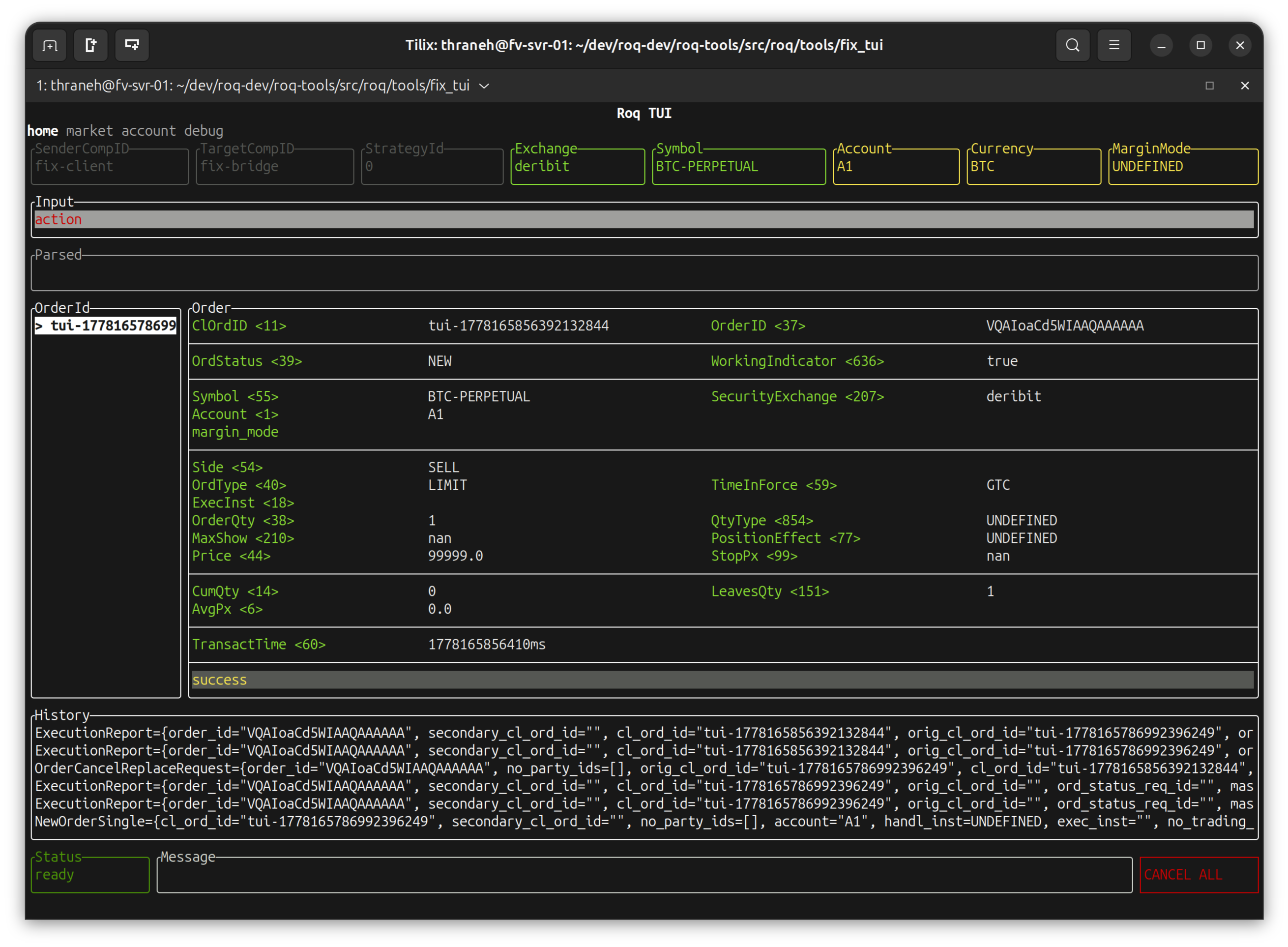

After hitting “enter”

../../../_images/modified1.png

Note

We notice that the message log contains the “OrderCancelReplaceRequest” request followed by two “ExecutionReport”s.

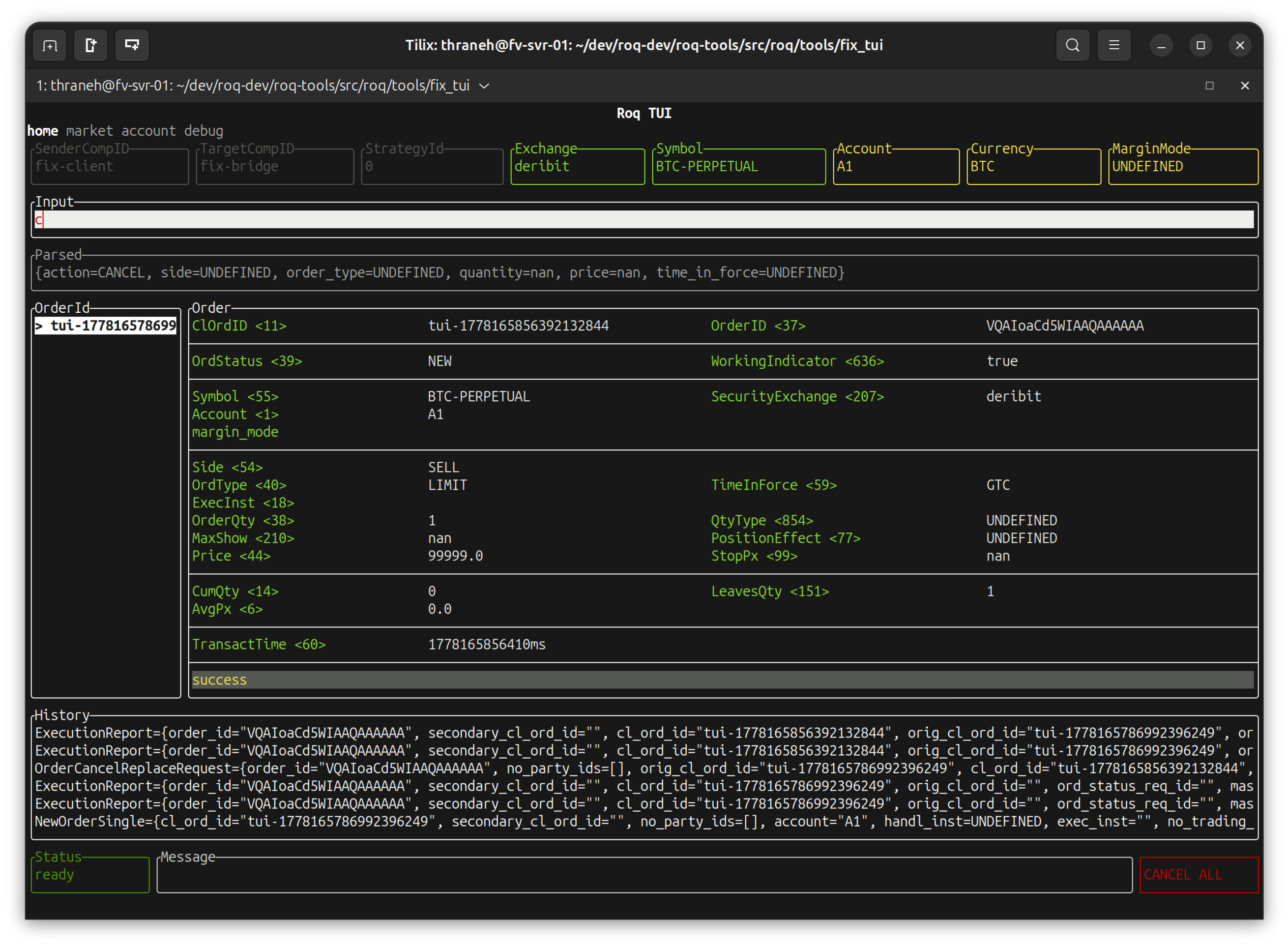

Finally we cancel the order

../../../_images/cancel1.png

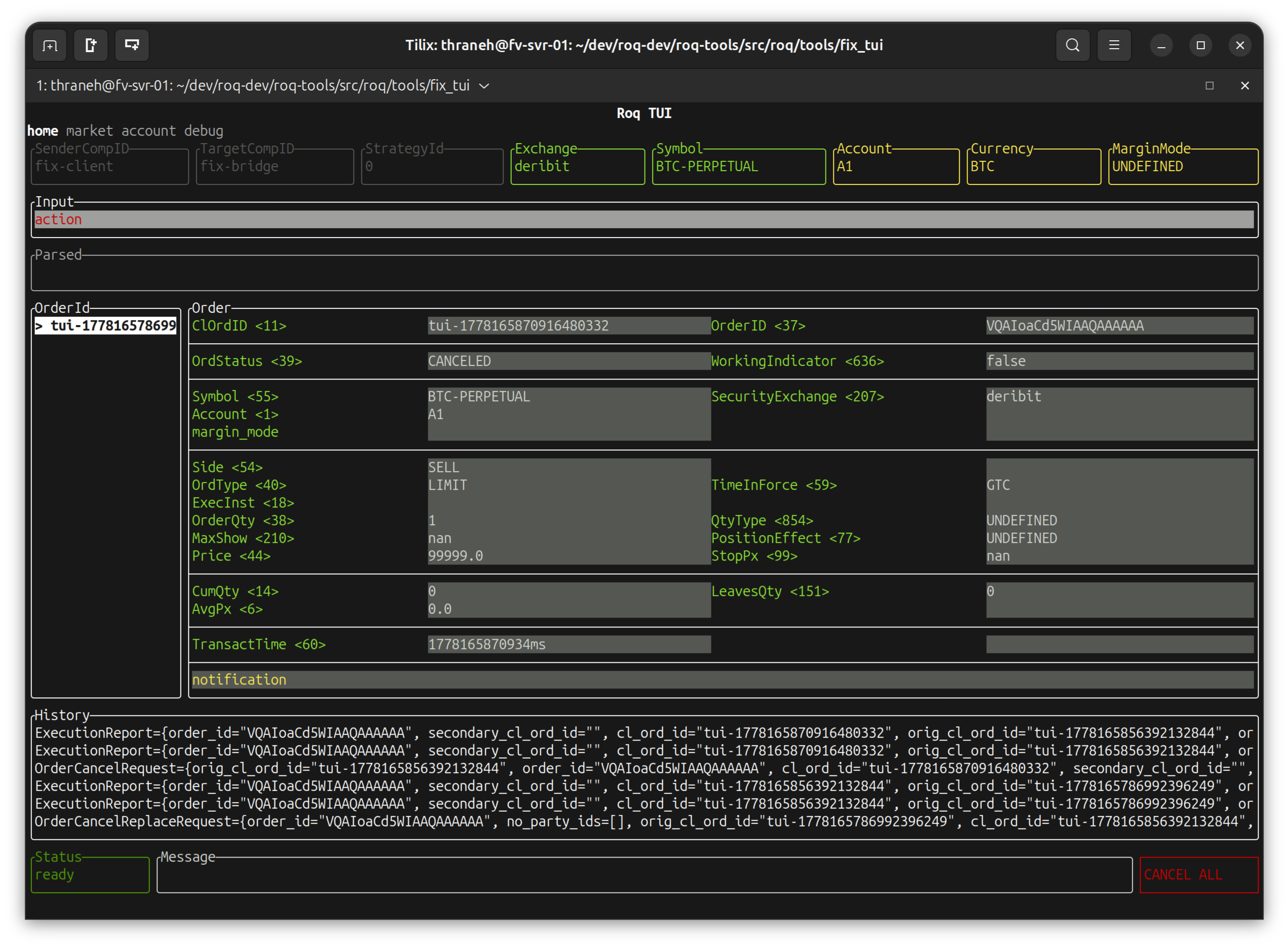

After hitting “enter”

../../../_images/canceled1.png

Note

We notice that the message log contains the “OrderCancelRequest” request followed by two “ExecutionReport”s.
